The Model AF

The Signascript Model AF, our fastest signature signing machine, is designed for users with the need for a flexible, 500-page, automatic paper feed system. It can accept paper stock as short as 3 inches in length and thicknesses from copy paper to poster board. The Model AF uses any standard writing instrument such as fountain pens, ball point pens, pencils or felt markers. The machine comes with a dual-barrel pen holder to accommodate oversized pens. As with all of the Signascript systems, the approximate 3" x 6" writing area offers writing options for holiday and note cards not available on other commercial signature replication systems.

The replaceable signature cartridge (about the size of a ¾" thick business card) enables all Signascript systems to write one or several signatures or complete personalized messages within the available writing area. In addition, any number of cartridges can be used with a machine, allowing for the secure use by multiple users within a business or organization.

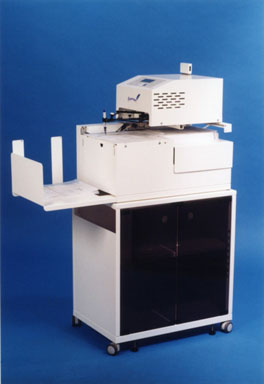

The unit will easily fit on a desk or table top or an optional stand/cart (shown in photo) is available. An optional paper handling unit with paper-reversing capabilities is available for maintaining the sorting direction for customers with mail-merge needs.

The Signascript Model AF Plus is an enhanced version of the standard Model AF for high volume users who need documents signed quickly but also need the capability to use standard SD memory cards programmed with spreadsheet data to “handwrite” personalized notes and envelopes in a generic font or in your own handwriting.

SPECIFICATIONS

Machine Dimensions:
Height: 19 inches (without cartridge)
Width: 15 inches (allow additional 2" for full writing arm movement)
Depth: 22½ inches (allow additional for paper output)

Power Requirements: 110 volts, 1 amp (can be configured for 220 volts)
